pagecache data corrupted

pagecache页面数据被写坏

Posted by icecube on April 9, 2024

简介

产品反馈虚拟机环境，内存配置为8G，升级版本时提示数据校验不过，然后升级失败。

4G内存配置无该问题。host是鲲鹏服务器，kunpeng-920处理器。

同样的虚拟机配置使用其它ubuntu或者centos的系统镜像，虚拟机都没有出现该问题。

定位过程

尝试在虚机设备上升级失败后计算版本文件的MD5值，每次都会变化。
drop_cache之后计算版本文件md5值是正确的，后续计算的MD5值都是错的，而且一直在变化。

每次MD5计算出错后，cp拷贝多份版本文件导出，
和正常版本文件对比发现，固定偏移处总有两处几个字节的变化，不像是单个bit位跳变，没有规律。

flash上的版本文件是没有改动的。因为清缓存后重新计算版本文件的MD5值是正确的。
既然没有造成page dirty，同一个页面也不太可能分配给两个不同的进程，
所以不倾向于pagecache机制问题，不倾向于内存分配问题。

测试偶然发现和配置telnet连接有关，不配置telnet，串口执行md5 ipe不会变化；
开启关闭一个telnet口，md5 ipe值也可能会变化。
telnet端口没有命令交互的话，几十秒md5值不会变化，但是之后会变，猜测可能和网络保活有关。

虚机镜像系统内核不支持硬件断点，启用了kasan的版本也没跑出来什么东西。

查找修改页面

先看看pagecache里的数据到底哪里被改了

写了个测试模块，遍历文件在pagecache中的所有的page，计算page页面数据的MD5值。
然后输出pfn、virtual address、physical address，以及md5值到trace缓冲区。

每次在MD5值出现变化后执行insmod ko 然后rmmod ko，拿到多次打印记录做对比。

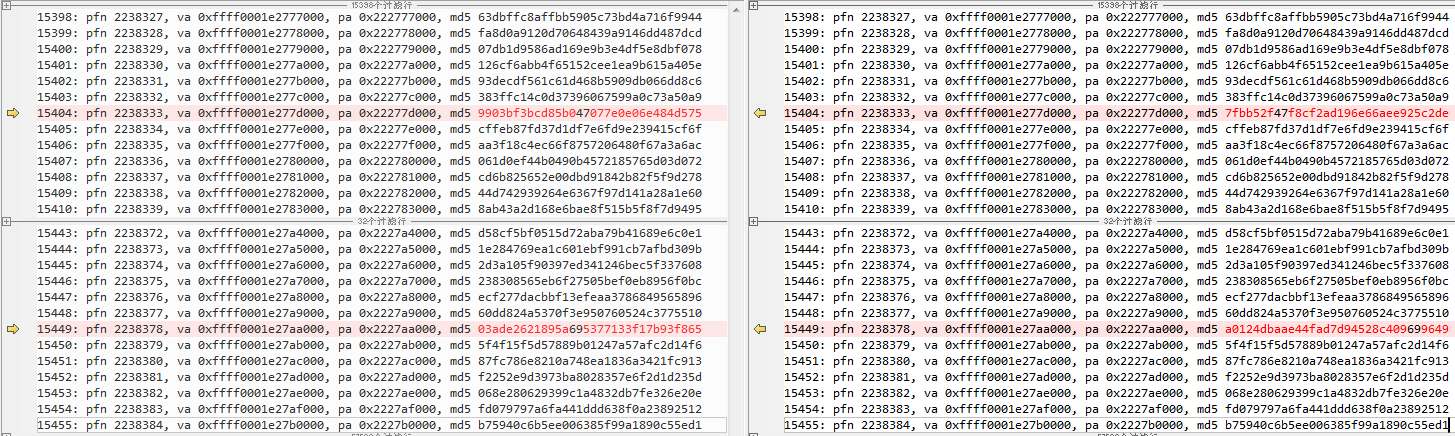

两个page的MD5值一直在变，其它page数据MD5都是一样的。

打印页面数据

再写一个测试模块，根据指定pfn号，打印出这两个页面数据，然后多次数据记录做对比。
确实这两个page里固定偏移处的一两个字节在变。

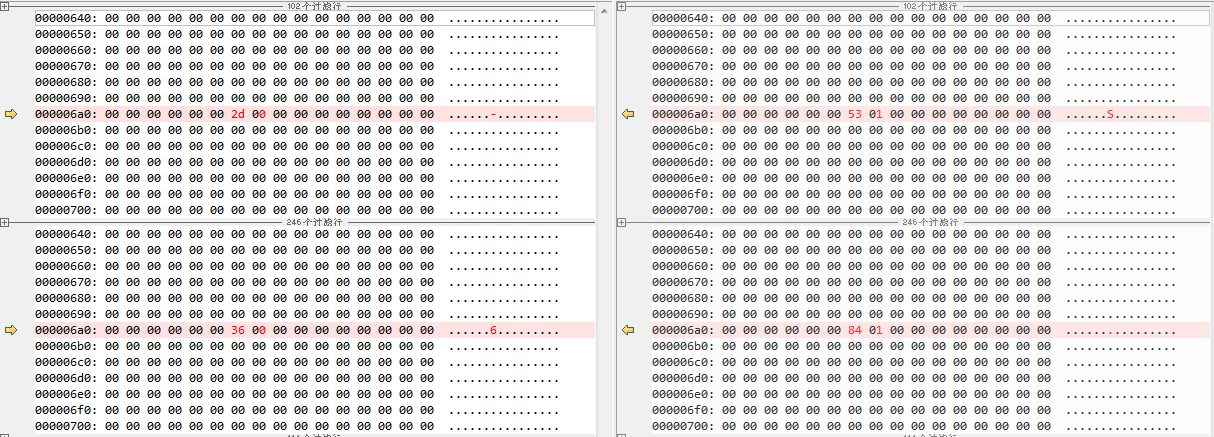

下图中页面数据基本为0，只有固定偏移0x6a6处连续两个字节非0，
是因为系统刚起来，只打开一个telnet口，pagecahe里并没有多少东西。 可见telnet嫌疑之重。

设置页面写保护

之前遇到过只读页面写入数据触发保护异常的情况，
既然出问题的pfn固定，就想着能不能利用这种方式抓下，看看能不能抓得到。

写一个测试模块，根据pfn号找到对应的pte表项，设置为只读。
一旦telnet命令交互产生网络数据，如果写到pagecache的这两个页面，那理应抓得到。

加载两次ko模块 insmod pgrdonly.ko pfn=2238333和insmod pgrdonly.ko pfn=2238378，打印如下

<3>[  765.828961] [pg_init 152] pc, init_mm addr 0xffff800028df1ae8
<3>[  765.829906] [set_page_rdonly 104] pc, pfn 2238333
<3>[  765.830630] [set_page_rdonly 111] pc, page 0xfffffc00094c5710
<3>[  765.831526] [set_page_rdonly 114] pc, page address 0xffff0001e277d000
<3>[  765.832539] [get_pte 42] pc, init_mm 0xffff800028df1ae8, page addr 0xffff0001e277d000
<3>[  765.833791] [ffff0001e277d000] pgd=000000023fff8003
<3>[  765.834489] pud=000000023f044003
<3>[  765.834991] pmd=000000023ef30003
<3>[  765.835457] pte=006800022277d713
<3>[  765.835993] [set_page_rdonly 117] pc, ptep 0xffff0001fef30be8
<3>[  765.836878] [set_pte_rdonly 84] pc, pte value 0x6800022277d713 before set rdonly
<3>[  765.838016] [set_pte_rdonly 86] pc, pte value 0xe000022277d793 construct wrprotect
<3>[  765.839166] [set_pte_rdonly 88] pc, pte value 0xe000022277d793 after set
<3>[  781.939330] Exiting set page readlony module

<3>[  784.383368] [pg_init 152] pc, init_mm addr 0xffff800028df1ae8
<3>[  784.384348] [set_page_rdonly 104] pc, pfn 2238378
<3>[  784.385135] [set_page_rdonly 111] pc, page 0xfffffc00094c6520
<3>[  784.386075] [set_page_rdonly 114] pc, page address 0xffff0001e27aa000
<3>[  784.387110] [get_pte 42] pc, init_mm 0xffff800028df1ae8, page addr 0xffff0001e27aa000
<3>[  784.388377] [ffff0001e27aa000] pgd=000000023fff8003
<3>[  784.389155] pud=000000023f044003
<3>[  784.389657] pmd=000000023ef30003
<3>[  784.390169] pte=00680002227aa713
<3>[  784.390676] [set_page_rdonly 117] pc, ptep 0xffff0001fef30d50
<3>[  784.391588] [set_pte_rdonly 84] pc, pte value 0x680002227aa713 before set rdonly
<3>[  784.392805] [set_pte_rdonly 86] pc, pte value 0xe00002227aa793 construct wrprotect
<3>[  784.394074] [set_pte_rdonly 88] pc, pte value 0xe00002227aa793 after set
<3>[  787.310472] Exiting set page readlony module

然后telnet端口随便执行一些命令，系统随即触发了保护异常。
0xffff0001e27aa6a6就位于pfn = 2238378的页面内部，
0x6a6的页内偏移也和页面数据对比中的偏移一致，可以看到是模块wan协议栈代码写越界。

<1>[  796.021377] Unable to handle kernel write to read-only memory at virtual address ffff0001e27aa6a6
<1>[  796.022942] Mem abort info:
<1>[  796.023373]   ESR = 0x9600004f
<1>[  796.023912]   EC = 0x25: DABT (current EL), IL = 32 bits
<1>[  796.024764]   SET = 0, FnV = 0
<1>[  796.025232]   EA = 0, S1PTW = 0
<1>[  796.025737] Data abort info:
<1>[  796.026185]   ISV = 0, ISS = 0x0000004f
<1>[  796.026812]   CM = 0, WnR = 1
<1>[  796.027278] swapper pgtable: 4k pages, 48-bit VAs, pgdp=0000000040a66000
<1>[  796.028376] [ffff0001e27aa6a6] pgd=000000023fff8003, pud=000000023f044003, pmd=000000023ef30003, pte=00e00002227aa793
<0>[  796.030145] Internal error: Oops: 9600004f [#1] SMP
<4>[  796.030936] Modules linked in: wan(PO) vsr(O) [last unloaded: pgrdonly]
<4>[  796.032370] CPU: 1 PID: 1993 Comm: kdrvfwdd1 Tainted: P           O      5.4.90 #1
<4>[  796.033595] Hardware name: QEMU KVM Virtual Machine, BIOS 0.0.0 02/06/2015
<4>[  796.034707] pstate: 60400005 (nZCv daif +PAN -UAO)
<4>[  796.037144] pc : ip_newid+0x4c/0x70 [wan]
<4>[  796.039317] lr : ip_newid+0x1c/0x70 [wan]
<4>[  796.040064] sp : ffff00019f6ce420
<4>[  796.040677] x29: ffff00019f6ce420 x28: 0000000000000000
<4>[  796.041619] x27: ffff000194cf43c8 x26: ffff800028963348
<4>[  796.042483] x25: ffff800008beae2c x24: ffff0001c0bb82d0
<4>[  796.043351] x23: ffff0001c00ef8f0 x22: ffff800028ea0858
<4>[  796.044209] x21: ffff000194238000 x20: ffff000194cf4380
<4>[  796.045114] x19: 0000000000000048 x18: ffff800028a04b18
<4>[  796.045984] x17: 0000000000000001 x16: ffff800028770420
<4>[  796.046886] x15: 0000000010000000 x14: ffff800029973000
<4>[  796.047754] x13: 0000000000000001 x12: 00000000ffffffff
<4>[  796.048645] x11: ffff800041f01000 x10: 0000000000000a00
<4>[  796.049515] x9 : ffff80002819c458 x8 : ffff00019f6ce4d0
<4>[  796.050367] x7 : 0000000000000000 x6 : 0000000000000001
<4>[  796.051256] x5 : 0000000000000000 x4 : ffff000194238000
<4>[  796.052143] x3 : ffff800028d66000 x2 : 0000000000000005
<4>[  796.053014] x1 : 000000000000f07e x0 : ffff0001e27aa6a6
<4>[  796.053891] Call trace:
<4>[  796.055566]  ip_newid+0x4c/0x70 [wan]
<4>[  796.057519]  tcp_output+0x26c4/0x2d00 [wan]
<4>[  796.059676]  tcp_do_segment+0xfd0/0x43e0 [wan]
<4>[  796.061788]  tcp_input+0x277c/0x2ba0 [wan]
<4>[  796.063818]  ip_protoinput+0xa8/0xd0 [wan]
...... // 省去部分业务栈
<4>[  796.099035]  kthread+0x12c/0x130
<4>[  796.099546]  ret_from_fork+0x10/0x18
<0>[  796.100167] Code: 79400000 0b000020 12003c01 f9400fe0 (79000001)
<4>[  796.101154] task_switch hooks:
[1]kdb>

模块代码

md5sum pagecache pages

#include <linux/module.h>
#include <linux/fs.h>
#include <linux/pagemap.h>
#include <linux/highmem.h>
#include <linux/mm.h>
#include <linux/slab.h>
#include <linux/sched.h>
#include <linux/namei.h>
#include <linux/fs_struct.h>
#include <linux/mount.h>
#include <linux/path.h>
#include <linux/crypto.h>
#include <crypto/hash.h>
#include <linux/hash.h>
#include <linux/init.h>
#include <linux/kernel.h>
#include <linux/mm_types.h>


#define MD5_DIGEST_LENGTH 16

static void calculate_md5(const char *data, size_t len, char *digest)
{
	struct crypto_shash *tfm;
	struct shash_desc *desc;
	char hex_digest[MD5_DIGEST_LENGTH * 2 + 1] = {0}; // 十六进制表示MD5值
	char *hash;
	int ret;

	tfm = crypto_alloc_shash("md5", 0, 0);
	if (IS_ERR(tfm)) {
		pr_err("Failed to allocate transform for MD5\n");
		return;
	}

	desc = kmalloc(sizeof(struct shash_desc) + crypto_shash_descsize(tfm),
			GFP_KERNEL);
	if (!desc) {
		pr_err("Failed to allocate shash descriptor for MD5\n");
		crypto_free_shash(tfm);
		return;
	}

	desc->tfm = tfm;

	ret = crypto_shash_init(desc);
	if (ret) {
		pr_err("Failed to initialize MD5 hash\n");
		kfree(desc);
		crypto_free_shash(tfm);
		return;
	}

	ret = crypto_shash_update(desc, data, len);
	if (ret) {
		pr_err("Failed to update MD5 hash\n");
		kfree(desc);
		crypto_free_shash(tfm);
		return;
	}

	hash = kmalloc(MD5_DIGEST_LENGTH, GFP_KERNEL);
	if (!hash) {
		pr_err("Failed to allocate memory for MD5 hash\n");
		kfree(desc);
		crypto_free_shash(tfm);
		return;
	}

	ret = crypto_shash_final(desc, hash);
	if (ret) {
		pr_err("Failed to finalize MD5 hash\n");
		kfree(hash);
		kfree(desc);
		crypto_free_shash(tfm);
		return;
	}
	bin2hex(hex_digest, hash, MD5_DIGEST_LENGTH);
	memcpy(digest, hex_digest, MD5_DIGEST_LENGTH * 2 + 1);

	kfree(hash);
	kfree(desc);
	crypto_free_shash(tfm);
}

static int print_page_md5(const char *filename)
{
	struct file *file;
	struct path path;
	struct inode *inode;
	struct page *page;
	unsigned long index;
	unsigned long phys_addr;
	unsigned long pfn;
	char *data;
	char digest[MD5_DIGEST_LENGTH * 2 + 1] = {0}; // 十六进制表示MD5值

	if (kern_path(filename, LOOKUP_FOLLOW, &path)) {
		printk(KERN_ERR "Failed to get path for file: %s\n", filename);
		return -ENOENT;
	}

	file = filp_open(filename, O_RDONLY, 0);
	if (IS_ERR(file)) {
		printk(KERN_ERR "Failed to open file: %s\n", filename);
		return PTR_ERR(file);
	}

	inode = file_inode(file);

	index = 0;
	while ((page = find_get_page(inode->i_mapping, index))) {
		pfn = page_to_pfn(page);
		phys_addr = page_to_phys(page);

		data = kmap(page);
		if (!data) {
			printk(KERN_ERR "Failed to map page data\n");
			put_page(page);
			continue;
		}

		calculate_md5(data, PAGE_SIZE, digest);
		trace_printk("%lu: pfn %lu, va 0x%lx, pa 0x%lx, md5 %s\n", index, pfn, (unsigned long)data, phys_addr, digest);

		kunmap(page);
		put_page(page);
		index++;

		cond_resched();
	}

	filp_close(file, NULL);
	return 0;
}

static int __init pg_init(void)
{
	const char *filename = "/mnt/flash/ipe";
	pr_err("[%s %d] pc, filename %s\n", __func__, __LINE__, filename);
	print_page_md5(filename);
	return 0;
}

static void __exit pg_exit(void)
{
	printk(KERN_INFO "Exiting pagecache_md5 module\n");
}

module_init(pg_init);
module_exit(pg_exit);

dump page content

#include <linux/module.h>
#include <linux/fs.h>
#include <linux/pagemap.h>
#include <linux/highmem.h>
#include <linux/mm.h>
#include <linux/slab.h>
#include <linux/sched.h>
#include <linux/namei.h>
#include <linux/fs_struct.h>
#include <linux/mount.h>
#include <linux/path.h>
#include <linux/crypto.h>
#include <crypto/hash.h>
#include <linux/hash.h>
#include <asm/delay.h>
#include <linux/delay.h>
#include <linux/printk.h>

unsigned char cont[PAGE_SIZE] = {0};

typedef unsigned long ulong;
unsigned long pfn;
module_param(pfn, ulong, S_IRUGO);

static void print_page(unsigned long pfn)
{
	struct page *page;
	unsigned char *data;
	unsigned long phys_addr;

	page = pfn_to_page(pfn);
	phys_addr = page_to_phys(page);

	data = kmap(page);
	if (!data) {
		printk(KERN_ERR "Failed to map page data\n");
		put_page(page);
		return;
	}
	memcpy(cont, data, PAGE_SIZE);

	pr_err("pfn %lu, va 0x%lx, pa 0x%lx\n", pfn, (unsigned long)data, phys_addr);
	pr_err("------------------------------------------\n");
	print_hex_dump(KERN_ERR, "", DUMP_PREFIX_OFFSET, 16, 1, cont, PAGE_SIZE, true);
	pr_err("------------------------------------------\n");

	kunmap(page);
	put_page(page);
}

static int __init pc_init(void)
{
	pr_err("[%s %d] pc, hello print page content pfn 2238334,2238397,2238000\n", __func__, __LINE__);
	print_page(2238334);
	print_page(2238397);
	print_page(2238000);
	return 0;
}

static void __exit pc_exit(void)
{
	printk(KERN_INFO "Exiting print page content module\n");
}

module_init(pc_init);
module_exit(pc_exit);

set page read-only

#include <linux/module.h>
#include <linux/fs.h>
#include <linux/pagemap.h>
#include <linux/highmem.h>
#include <linux/mm.h>
#include <linux/slab.h>
#include <linux/sched.h>
#include <linux/namei.h>
#include <linux/fs_struct.h>
#include <linux/mount.h>
#include <linux/path.h>
#include <linux/crypto.h>
#include <crypto/hash.h>
#include <linux/hash.h>
#include <linux/init.h>
#include <linux/kernel.h>
#include <linux/mm.h>
#include <linux/pfn.h>
#include <linux/slab.h>
#include <linux/kallsyms.h>
#include <asm/pgtable.h>

#include <asm/page.h>
#include <asm/pgalloc.h>

typedef unsigned long ulong;

static unsigned long pfn;

module_param(pfn, ulong, S_IRUGO);

struct mm_struct *pmm = NULL;

static pte_t *get_pte(unsigned long addr)
{
	struct mm_struct *mm = pmm;
	pgd_t *pgdp, pgd;
	pud_t *pudp, pud;
	pmd_t *pmdp, pmd;
	pte_t *ptep = NULL, pte;

	pr_err("[%s %d] pc, init_mm 0x%lx, page addr 0x%lx\n", __func__, __LINE__, (unsigned long)pmm, addr);

	pgdp = pgd_offset(mm, addr);
	pgd = READ_ONCE(*pgdp);
	pr_err("[%016lx] pgd=%016llx\n", addr, pgd_val(pgd));

	if (pgd_none(pgd) || pgd_bad(pgd)) {
		pr_err("[%s %d] pc, pgd invalid\n", __func__, __LINE__);
		return 0;
	}

	pudp = pud_offset(pgdp, addr);
	pud = READ_ONCE(*pudp);
	pr_err("pud=%016llx\n", pud_val(pud));
	if (pud_none(pud) || pud_bad(pud)) {
		pr_err("[%s %d] pc, pud invalid\n", __func__, __LINE__);
		return 0;
	}

	pmdp = pmd_offset(pudp, addr);
	pmd = READ_ONCE(*pmdp);
	pr_err("pmd=%016llx\n", pmd_val(pmd));
	if (pmd_none(pmd) || pmd_bad(pmd)) {
		pr_err("[%s %d] pc, pmd invalid\n", __func__, __LINE__);
		return 0;
	}

	ptep = pte_offset_map(pmdp, addr);
	pte = READ_ONCE(*ptep);
	if (!pte_valid(READ_ONCE(*ptep))) {
		pr_err("[%s %d] pc, pte invalid\n", __func__, __LINE__);
		return 0;
	}
	pr_err("pte=%016llx\n", pte_val(pte));

	return ptep;
}

static void set_pte_rdonly(pte_t *ptep, unsigned long address)
{
	pte_t pte;
	pte = READ_ONCE(*ptep);
	pr_err("[%s %d] pc, pte value 0x%lx before set rdonly\n", __func__, __LINE__, (unsigned long)pte_val(pte));
	pte = pte_wrprotect(pte);
	pr_err("[%s %d] pc, pte value 0x%lx construct wrprotect\n", __func__, __LINE__, (unsigned long)pte_val(pte));
	set_pte_at(pmm, address, ptep, pte);
	pr_err("[%s %d] pc, pte value 0x%lx after set\n", __func__, __LINE__, (unsigned long)pte_val(READ_ONCE(*ptep)));
	flush_tlb_all();
}

static void write_rdonly_page(unsigned long addr)
{
	memset((void*)addr, 0x0, PAGE_SIZE);
}

static void set_page_rdonly(unsigned long pfn)
{
	struct page *page = NULL;
	unsigned long address;
	pte_t *ptep;

	pr_err("[%s %d] pc, pfn %lu\n", __func__, __LINE__, pfn);
	page = pfn_to_page(pfn);
	if (!page) {
		pr_err("[%s %d] pc, get pfn %lu page failure\n", __func__, __LINE__, pfn);
		return;
	}

	pr_err("[%s %d] pc, page 0x%lx\n", __func__, __LINE__, (unsigned long)page);

	address = (unsigned long)page_address(page);
	pr_err("[%s %d] pc, page address 0x%lx\n", __func__, __LINE__, address);

	ptep = get_pte(address);
	pr_err("[%s %d] pc, ptep 0x%lx\n", __func__, __LINE__, (unsigned long)ptep);

	set_pte_rdonly(ptep, address);
}

static void set_alloc_page_rdonly(void)
{
	struct page *page;
	unsigned long address;
	pte_t *ptep;

	page = alloc_page(GFP_KERNEL);
	if (!page) {
		pr_err("[%s %d] pc, alloc_page failure\n", __func__, __LINE__);
		return;
	}

	pr_err("[%s %d] pc, page 0x%lx\n", __func__, __LINE__, (unsigned long)page);

	address = (unsigned long)page_address(page);
	pr_err("[%s %d] pc, page address 0x%lx\n", __func__, __LINE__, address);
	ptep = get_pte(address);

	pr_err("[%s %d] pc, ptep 0x%lx\n", __func__, __LINE__, (unsigned long)ptep);
	set_pte_rdonly(ptep, address);
}

static int __init pg_init(void)
{
	pmm = (struct mm_struct *)kallsyms_lookup_name("init_mm");
	if (!pmm) {
		pr_err("[%s %d] pc, find init_mm failure\n", __func__, __LINE__);
		return -1;
	}

	pr_err("[%s %d] pc, init_mm addr 0x%lx\n", __func__, __LINE__, (unsigned long)pmm);
	set_page_rdonly(pfn);
	/*set_alloc_page_rdonly();*/
	return 0;
}

static void __exit pg_exit(void)
{
	pr_err("Exiting set page readlony module\n");
}

module_init(pg_init);
module_exit(pg_exit);
